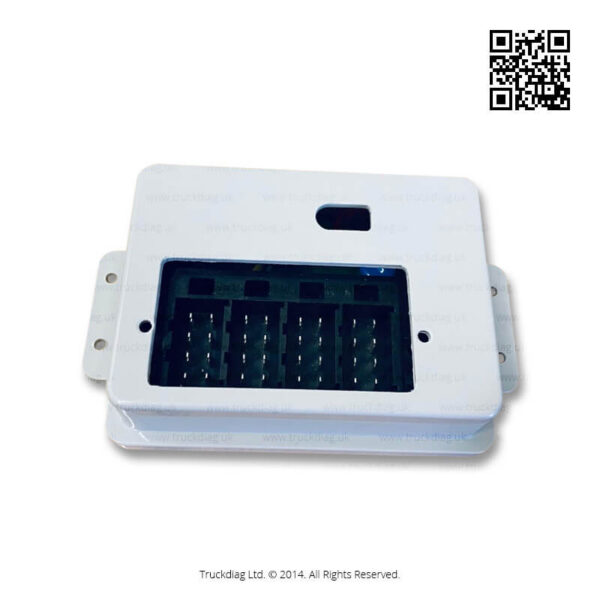

Tachograph Simulator DTCO SIM CAN


Tested on 2021 trucks.

Tachograph Simulator DTCO SIM CAN designed to replace the tachograph if it's not necessary anymore, but other electronic modules of the vehicle require specific signals generated by the tachograph. This simulator generates signals to ensure the proper work of other truck modules.

V1 version – you can only completely remove Tachograph, there is no Start/Stop option
V2 version – drive with Tachograph Start/Stop option


Tachograph data sheetPlease pay attention to this note before purchasing this item. To make your experience as good as possible, we need to know more information about your truck so that we could set up the emulator for maximum compatibility. We need to know the year or production of your vehicle and the code located on the original tachograph of your vehicle (you can see an example on the right). Please provide this data and the data required individually by each model under product selection (select vehicle model and you’ll see the red text below) by email or in the “Additional information” field (checkout page). Thank you.

Tachograph Simulator DTCO SIM CAN allows you to remove the tachograph from the vehicle even if other electronic modules require specific signals generated by the tachograph device. Tachograph Simulator DTCO SIM CAN completely replace tachograph device and generates signals like V imp, 4 imp/m, zero speed signal, vehicle speed (via CAN), distance traveled (via CAN or K-Line), date and time (via CAN or K-Line). Signals generated by the simulator module are compatible with ISO 16844-1. The module works with 12V or 24V power supplies (40mA consumption).

Tachograph Simulator DTCO SIM CAN features

Tachograph Simulator has „k” constant setting range 4000 ÷ 64000 imp/km, 8V DC power output for the speed sensor. It works fine in the temperature range from –40°C to +85°C. The simulator is programmable, and we prepare every unit before shipping it to the clients, we make adjustments for maximum compatibility. That’s why we ask to provide additional data (you’ll see requirements on the product page right after selecting the truck make from the dropdown list). Don’t forget to provide this data to us when purchasing this product.

Attention!It’s illegal to use this equipment in several countries. You assume full responsibility for the use of the device. It’s your decision to use an tachograph emulator or not. We will not accept any liability for any consequences associated with usage of tachograph simulation devices.

Additional information

Weight 0,6 kg
Dimensions 20 × 10 × 7 cm

12 month warranty
